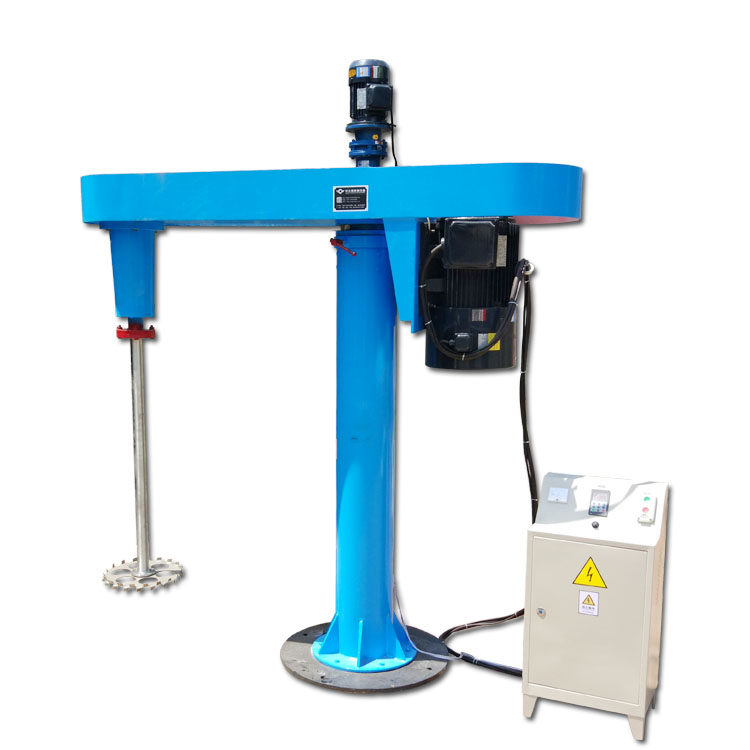

Hydraulic High Speed Dissolver

Hydraulic High Speed Dissolver

Technique
∙The dissolver is a fast, high-capacity disperser with a wide range of speeds and high level of efficiency
∙Push-button speed control
∙Speed indicator and automatic speed reduction
∙The product is accelerated radially by the dispersion disk, deflected to the top and bottom at the tank wall and directed back to the dispersion disk through formation of a vortex
∙Shear forces around the circumference of the toothed disk result in highly efficient dispersion, good wetting and deagglomeration
∙For high-viscosity products, a tank wall scraping device can aid the mixing and dispersing process
∙Hydraulic lifting/lowering device
∙Push-button stroke adjustment
∙Adjustable tank clamping mechanism
∙Stainless steel shaft and dispersion disk; additional product-specific mixing tools available depending on the application
∙Manufactured in accordance with CE guidelines

Options
∙Application-specific tank cover designs
∙Vacuum design
∙Scraping device for tank wall
∙Temperature sensor
∙Timer
∙Design for ceiling installation with hinged head
∙Various explosion protection ratings
∙Special tank clamping mechanisms
∙PLC-controlled units

Advantage

∙ Easy handling which reduces costs and time
∙ Customized solutions on request
∙ A wide range of variously equipped versions available for highest process safety
∙ Various, easily exchangeable mixing tools to increase the efficiency
∙ Temperature measurement by wand or agitator shaft which increases the reliability of the production process
∙ Optimal positioning of the mixing tool via hydraulic lifting/lowering device
∙ Dissolver only starts When the vessel is correctly positioned
∙ At the lowest possible speed
∙ Two-handed operation for lifting/lowering of the tank cover (optional design)
∙ Automatic switch-off, if the toothed disks are lifted above the level of the tank
∙ Protection against accidental contact with the rotating shaft
∙ Bellows serving as dust protection for the shaft
