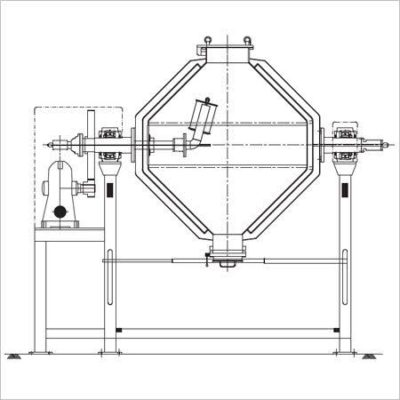

Roto Cone Vacuum Dryer Working Principle
1.Let heat source(for example,low pressure steam or thermal oil)pass through the sealed Jacket The heat will be transmitted to raw material to be dried through inner shell;
2.Under driving of power,the tank is rotated slowly and the raw material inside it is mixed continuously.The purpose of reinforced drying can be realized;
3.The raw mate rial is under vacuum The drop of steam pressure makes the moisture(solvent)at the sudace of raw material become saturation and will evaporate The solvent will be discharged th rough vacuum pump and recovered in time The inner moisture(solvent)of raw material will infiltrate,evaporate and discharge continuously The th ree processes are carried out unceasingly and the purpose of drying can be realized within a shon time.
Material to dried
It is suitable for the raw materials that need to concentrate,mixed and dried at low temperature(for example,biochemistry)products in chemical,phamaceutical and foodstuff industries.Particularly it is suitable for the raw materials that are easy to be oxidized,volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.
Characteristics
1.When oil is used to heat,use automatic constant temperature control.It can be used for drying biology products and mine Its temperatu re of operation can be adjusted form 20-160oC.
2.Compared to ordinal d ryer,its heat efficiency will be 2 times higher.
3.The heat is indirect So the raw material can not be polluted.
4.It is in conformity with the requi rement of GMR It is easy in washing and maintenance.
Technical Parameter
| model name |
100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
| volume inside the tank(L) |
100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
| Volume to fill raw material(L) |
≤50 | ≤175 | ≤250 | ≤375 | ≤500 | ≤750 | ≤1000 | ≤1750 | ≤2250 | ≤2500 |
| Heating area (m2) |
1.16 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 11.2 | 13.1 | 14.1 |
| revolution ( rpm) |
4 – 6 | |||||||||
| power of motor (kw) |
0.75 | 1.1 | 1.5 | 2 | 3 | 3 | 4 | 5.5 | 7.5 | 11 |
| occupiedarea, L×W(mm) |
2160 ×800 |
2260 ×800 |
2350 ×800 |
2560 ×1000 |
2860 ×1300 |
3060 ×1300 |
3260 ×1400 |
3760 ×1800 |
3960 ×2000 |
4400 ×2500 |
| rotating height (mm) |
1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4100 | 4200 |
|
design pressure |
-0.1-0.15 | |||||||||
| design pressure of jacket (MPa) |
≤0.3 | |||||||||
| working temp- erature(oC) |
In the tank≤85 jacket≤140 | |||||||||
| When use con- densator, |
2X-15A | 2X-15A | 2X-30A | 2X-30A | 2X-70A | JZJX300-8 | JZJX300-4 | JZJX600-8 | JZJX600-4 | JZJX300-4 |
| model and power of vacuum pump |
2KW | 2KW | 3KW | 3KW | 505KW | 7KW | 9.5KW | 11KW | 20.5KW | 22KW |
| When don,t use condensator, |
SK-0.4 | SK-0.8 | SK-0.8 | SK-2.7B | SK-2.7B | SK-3 | SK-6 | SK-6 | SK-9 | SK-10 |
| model and power of vacuum pump |
1.5KW | 2.2KW | 2.2KW | 4KW | 4KW | 5.5KW | 11KW | 11KW | 15KW | 18.5KW |
| Weight(kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 | 7500 | 8600 |
