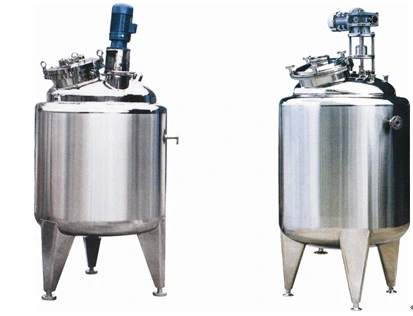

Stainless steel mixing tank
Our main products are stainless steel mixing tank, stainless steel reaction kettle and so on.Products are mainly used in chemical, food engineering, biochemical, pharmaceutical engineering and other fields.
Stainless steel Reaction Kettle
We are a chemical equipment supplier from Abster ™. Our main products are stainless steel mixing tank, stainless steel reaction kettle and so on. Products are mainly used in chemical, food engineering, biochemical, pharmaceutical engineering and other fields
Description
leading manufacturing of various SS Reactor & Tanks include reaction tanks , chemical Reactor tank, stainless steel reactor , jacketed reaction tanks in various capacity from 1 KL to 50 KL with complete with gear box motor, Agitator with product tranfer systems.
Applications:
These GMP equipments are widely used for Pharma API , Biochemical, Pharmaceuticals Bulk Drugs & Pharma API Industries, Fertilizers, Dyes & Intermediate Industries, Pesticide & Herbicide Industries, Aromatics Industries, Rubber Chemical Industries, Crystallization, Pigment & Paint Industries, Polymerization Industries, Fine Chemical Industries etc.
Pharmaceutical Ingredients Manufacturing Reactor – GMP Grade Active
Abster ™ Equipment is manufacturing and supplying range of GMP Reactor & Mixer , Tanks , REACTOR (GMP MODEL) FDA, GMP quality standard and in various application and specifications as per customer requirement we manufacturing and installed completed systems.
| Volume of Reactor | 500-20000L Stainless Steel reactor also customized up to 50 KL/ 50000 liters | |
| Material of Reactor | Body | SUS304/SUS316L for reactor MOC |
| Jacket | SUS304/or carbon steel | |
| Reactor – Jacket type | Outer coil, Inner coil, Jacket | |
| Heat exchange type of Reactor | Hot Steam, Electric,Oil,cold water suitable | |
| Reactor Pressure Type | Normal,Pressure,Negative Pressure | |
| Surface treatment of reactor | Mirror, Matt, pickling passivization, sand blasting | |
| Polishing accuracy | Inside 0.4μm,outside 0.6μm | |
Our Reactor equipment / reactor kettle user free flow and semi solid Liquid Resin, Rubber and Adhesive , Pesticide , Agro chemical, Herbicide , Fungicide , Glue and Dye color , Food and Pharma, Chemicals, Minerals, Guar Gums, Starch, Pigment Colors & etc.
| Reactor specification | Reactor Volume (L) |
Reactor Diameter (mm) |
Height (mm) |
Outer coil heat exchange area (M2) |
Inner coil heat exchange area (M2) |
Motor Power (Kw) |
Motor Speed (Rpm) |
|---|---|---|---|---|---|---|---|
| 500L | 700 | 900 | 750 | 2.438 | 2 | 2.2 | 60-100 |
| 1000L | 1300 | 1200 | 750 | 2.867 | 2.6 | 3 | |
| 1500L | 1900 | 1300 | 1000 | 3.537 | 3.1 | 4 | |
| 2000L | 2300 | 1300 | 1300 | 4.165 | 3.8 | 5.5 | |
| 3000L | 3600 | 1500 | 1500 | 5.569 | 5.4 | 7.5 | |
| 5000L | 6200 | 1800 | 1800 | 10.323 | 16.1 | 11 | |
| 10000L | 11000 | 2200 | 2200 | 15.505 | 10.9 | 22 | |
| 15000L | 16000 | 2500 | 2500 | 19.932 | 29.5 | 30 | |
| 20000L | 23000 | 2800 | 2800 | 27.6564 | 37.9 | 37 | |
| Note:Stirring speed exceeds 160rpm,using step less variable speed motor,step less speed change 0-1250rpm. | |||||||
Stainless steel reactor vessel , stainless steel reactor , Reactor Vessel, Stainless Steel Reactor Vessels, Reactor Vessels
Our Reactor range 3-4 KL, 4-5 KL, 1 KL, 1-2 KL, 2-3 KL, 100 litres – 25000 litres, 1-2 KL, 2-3 KL, 5 KL , 10 KL, 8KL, 12 KL, 15 KL, 20 KL, 25 KL reactor a wide range of chemical reactors kettle, chemical process reactor equipment, Bulk Drug Pharmaceutical API reactor, stainless steel reactor for bulk drugs pharmaceutical industry , Limpet Jacketed reactor demanding with used in petroleum refining, petrochemical industries, chemical, pharma, bulk drugs, pesticide, agro-chemical, herbal, etc for Liquid water base and Solvent base formulation, Solid-liquid mixing in Chemical, Food, , Ayurveda ,Pharma & Paints Industries , Lube oil / Engine oil petrochemical industries, chemical, pharma, bulk drugs, pesticide, agro, herbal, etc.
Stainless Steel Reactor with Mild Steel Plat form and operating panel
Reaction Kettle , Reactor consists of the reactor body, tank cover, jacket, agitator, transmission, shaft seal device and supporting plat form.
- Application Resin Reactor for alkyd resin,epoxy resin,phenolic resin,acrylic resin,unsaturated polyester resin,polymer resin.
- Glue/ Adhesive Reactor for Hot melt glue/adhesive,white glue,silicon glue,PVC glue,PVA,PU glue….
- Stainless Steel Reactor and MS reactor Paint,pigment,other latex,emulsion and liquid glue and adhesive.
- Reactor Material, Reactor kettle SUS 304 or SUS 316 , Jacketed SS304 or Mild Steel , MS etc materials with Heating way: Electric heating, oil heating, steam heating or firing heating. optionally with Structure type: Outer coil heating reactor, Inner coil heating reactor, Jacket heating reactor
Stainless Steel Reactor Working Principle
Stainless Steel Liquid Reactors Specially Designed mixers for suitable application and construction with control of high temperature, Stainless Steel Reactor equipment with pressure and vacuum processes. These Reactor processes is necessary for the reactions of different mixture Products materials.
Our Reactor Range as below :
- Chemical Reactors
- High Pressure Reactors
- Chemical Process Reactor
- Chemical Reactor
- Stainless Steel Reactor,
- Limpet Reactor
- Jacketed Reactors
- Process Reactors
- Industrial Reactor
- Reactors Kettle
- Chemical Vessel
- Pressure Vessel
- Chemical Vessels
- Mixing Vessels
- Jacketed Vessels
- Fermented Vessels
- Reactor Vessels
- Bio-Reactors Vessels
- Pressure Reaction Vessel
- Process Vessels
- Stainless Steel Pressure Vessels
- Agitated Vessels
- Chemical Agitators Vessels
- Stainless Steel Reaction Vessel
- Reaction Vessel
- Chemical Reaction Vessel
- Receiver Vessels
- Chemical Blenders
- Chemical Blender
- Powder And Liquid Blending Machine
- Chemical Mixers
- Dual Shaft Twin Shaft Mixer
- High Speed Dual Shaft Liquid Mixer
- Powder Mixture
- Chemical Mixer
- Liquid Mixers
- Chemical Storage Tanks
- Stainless Steel Storage Tanks
- Chemical Storage Tank
- Chemical Process Tanks
- Reaction Tanks
| Reactor Design | ||
|---|---|---|
| Body shape | cylindrical, conical | |
| Top / base shape | flat, dished | |
| Body size | 0,1 to 50 m³ | |
| Material | Stainless steel, duplex steel , Mild Steel carbon steel etc. | |
| Material thickness | up to 40 mm | |
| Top / base | up to 50 mm | |
| Max. pressure | 25 bar | |
| Max. vacuum | 758 mmHg | |
| Vacuum generation | pump (up to 730 mmHg), ejector (up to 758 mmHg) | |
| Shaft | Single / Multiple depend application | |
| Blades | cross bar, grid, wing, etc. | |
| RPM< | Up to 120 | |
| Surface: | painted, brushed, polished, mirror polished, Matt as per customer requirement | |
Optional parts:
- Product Sampling valves
- Heating / cooling jacket
- Various automation sensors
- Eyeglass with lighting
- Support frame, mounting brackets and platform
- Lift system
- Speed control
- Remote control etc.
