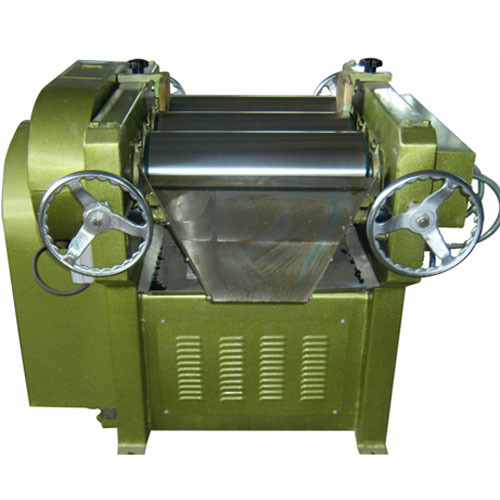

Three roll mill or say Triple Roll Mill uses shear force created by three horizontally positioned rolls rotating in opposite directions and different speeds relative to each other, in order to mix, refine, disperse, or homogenize viscous materials fed into it.
Three roll Mill Working Principle
The material is fed into gap between feeding roller and middle roller from feeding hopper, to start first squeeze and milling, then transfer into outlet roller for second milling. The material can be collected in outlet blade after second milling to finish the operation process. The material can be mixing and milling between three rollers until reach the fineness. The milling times and fineness are related with material quality and previous process.
Abster improvement type machine is equipped with latest overseas chain wheel transmission system, all the gears are dipped inside lubricant which will prolong the machine life to maximum limit, reduce noise and energy consumption. All the sealing parts are imported. The formerly top roller adjustable structure have changed into gear adjusting roller which operate more stably and easily, working longer time. The water temperature indicator can be set in both inlet and outlet to assure stable temperature and good quality. The cooling water cycling system and roller heating system can be available as customer request. The products outlet is made of stainless steel. The outside of machine is coated with anti-dissolvent paint which make machine shining and prevent any possible dis solvent corrosion.
Triple Roll Mill Introduction
This Three Roll Mills machine is widely used in high viscosity materials grinding process. Its 3-rollers squeeze materials by different speed so as to get good result.
Machine’s surface is coated anti-solvent paint which is shining and prevent any possible corrosion.
Technical Parameter
1. Model: KM-S65, KM-S100, KM-S150, KM-S260, KM-S405
2. Voltage: 415/380V/50HZ,3Phase( voltage can be customized ).
3. Rollers’ material: Chilled alloy-steel, very wear-resistant.
4. Transmission ways: by gears.
5. Accessory: with scraping knife.
Design Highlights
1. Our this model adopts newest chain wheel transmission system,all gears are dipped in lubricant oil.
2. This machine has long working life and small noise.
3. This model has changed to the gear adjusting which is more stable.
4. Water temperature indicator can be set in both inlet and outlet to keep stable temperature&good quality.
5. The cooling water cycling system and roller heating system can be available as customer request.
Technical parameter:
| SM series triple roller miller: | |||||||
|
Model |
65 |
120 |
160 |
260 |
315 |
405 |
|
| Roller diameter(mm) |
65 |
120 |
160 |
260 |
315 |
405 |
|
| Roller working face Length |
140 |
280 |
320 |
620 |
760 |
810 |
|
| Rotation speed
(Fast,middle,slow) |
1:2.63:7.1 |
1:3.13:9.77 |
1:206:5 |
1:2.5:6.25 |
1:2.87:8.1 |
1:3.14:9.77 |
|
| Roller slow speed |
30 |
23 |
35 |
25 |
17.5 |
14.39 |
|
| Roller middle speed |
79 |
72 |
72 |
63 |
50 |
44.39 |
|
| Roller fast speed |
210 |
225 |
175 |
157 |
142 |
136 |
|
| Motor powerKw |
0.55 |
1.1 |
2.2 |
7.5 |
11 |
15 |
|
| Motor rotation speed r/min |
1400 |
910 |
710 |
720 |
730 |
730 |
|
|
Diamension |
Lmm |
400 |
800 |
780 |
1330 |
1560 |
1700 |
|
Wmm |
450 |
700 |
840 |
1300 |
550 |
1860 |
|
|
Hmm |
430 |
700 |
820 |
1120 |
1200 |
1400 |
|
|
Weight Kg |
80 |
320 |
500 |
1800 |
2580 |
4200 |
|
