Multi Mill can be used widely for wet & dry granulation, pulverization etc. in various type of applications, such as Pharmaceutical, Cosmetic, Dyes, Colours, Food Products, Spices, Detergents, Insecticides, Plastics & Resins, Fertilizers etc. This portable, self-contained unit is useful for high-speed granulation, pulverizing and mixing of a wide range of wet and dry materials effectively.
Features:

Multi Mill is a sturdy, economical &maintenance free machine The machine is designed for continuous operation All contact parts can be easily & quickly dismantled & cleaned
Flame Proof electrical components can also be provided
Multi Mill without belt drive i.e. with direct drive, is also available with VFD Drive.

SALIENT FEATURES :

• Multi Mill Suitable for Dry Granulation / Pulverizing / Shredding & Chopping of Materials.
• Multi Speed Drive for Various Product Grading.
• Easy Dismantling & Cleaning.
• Output 20kg To 400kg / HR Depend upon Machine Model, Characteristic of Product & the Screen Size.
• Easy Maneuverability with the help of Castor Wheels.
• Beaters 8 to 12 nos. with Knife / Impact Edge & 2 Scrapper Blades.
• Rotor Speed – 750 / 1500 / 2100 / 3000 RPM Approx.

MULTI MILL is designed to utilize the principle of variable force swing beaters having both knife and impact edges rotating
within a selected screen to control the particle reduction. Material fed in to the processing chamber moves to the periphery
and passes through the screen radially and tangentially. Finally the processed material gets collected in to the container
kept below the processing chamber.

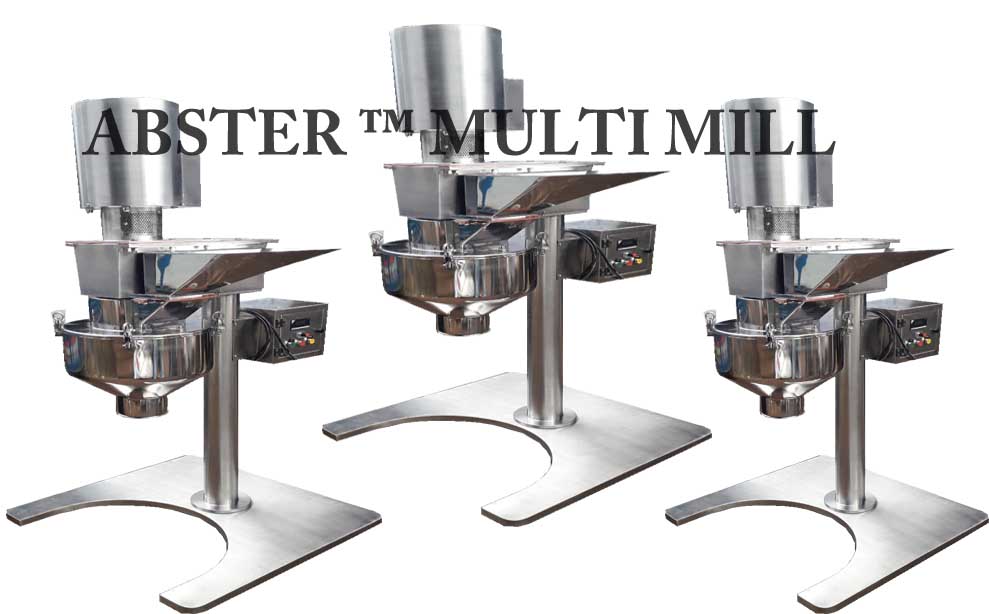

Abster™ Multi mill Specification
Technical Specifications
Drive Motor : 3HP / 1440 rpm / 3 Phase / 440V / AC.
D.O.L. starter provided with reversible switch.
Rotor RPM : 750 / 1400 / 2200 / 2800 (approximate).
Blades 12 Nos. with Knife & Impact Edges & 02 Nos. Scraper Blades.
Output : Depending upon the products and the reduction required in sizes.
Foundation not required. Castor wheel mounted base.

Yes! I’m Interested

Multi Mill

Product Description

The Multimill Machine is useful for various purposes like granulation, shredding, pulverization etc. The unit consists of vertically mounted Non Flame proof motor which drives the motor shaft through bearing housing.

Your Content Goes Here

Your Content Goes Here

Your Content Goes Here

Your Content Goes Here

Specification





Machine Type MM – 200
Out put 50 Kgs To 200 Kgs/hour
Rotor assembly dia 250 mm (approx)
Rotor speed 750 / 1500 / 2300 / 3000 RPM
Beaters 12 knife & impact edges & 2 scrapper blades
Screen dimensions Iinner diameter-260 mm, ht-135 mm
Motor TEFC, 3 H.P., 1440 RPM, 440 V, 50 cs, 3 hp, a.c. supply
Starter ‘Dol’ with reversible switch
Material charging height 1445 mm (Approx)
Overall Dimensions (mm) 870 x 965 x 1630 mm Ht.
Net Weight 275 Kgs. (approx)
Gross weight 425 kgs. (approx)
Case dimension (mm) 1200 mm x 1550 mm x 1860 mm (ht)

  Note

  • Power Voltage can be adjusted as per customer’s domestic power requirements.
  • Rights of technical improvement & modification reserved.
  • Illustrations & dimensions are shown for information purpose only.
