OINTMENT MANUFACTURING PLANT



Ointment plant Equipment

Ointment Manufacturing Plant is an ideal tool for the pharmaceutical & cosmetic industries for the production of Ointment, Cream, Lotions, Tooth Paste & other emulsions & homogenization. It is specially designed to take care of two critical factors which directly affects the quality of the Ointment/Creams.
Minimum man handling of Ointment.
Negligible vacuum drop during mixing & blending.
Needless to say, it also provides the benefits of the effective manpower utilization.

Salient Features
Compact & versatile as per GMP norms.
All contact parts made of SS316 and Teflon material.
Hydraulic lid lifting and tilting arrangement of the main vessel to facilitate cleaning at the time of product change over.
Specially designed stirrer with flexible Teflon scraper.
Mixing principles are matching with international standards.
Variable speed provided for stirrer and homogenizer for different speeds.
All transfer done through vacuum to avoid any hand touch and contamination.
Homogenizer fitted in the main shaft to ensure high shear emulsification and homogenization of the product.
Specially designed inline filter to ensure proper filtration.
Minimum change over time.
Pneumatic/hydraulic lifting to lid manufacturing vessel.
Mixing vessel consist of two speed agitators and one variable fast speed agitator.



Ointment Plant Equipment

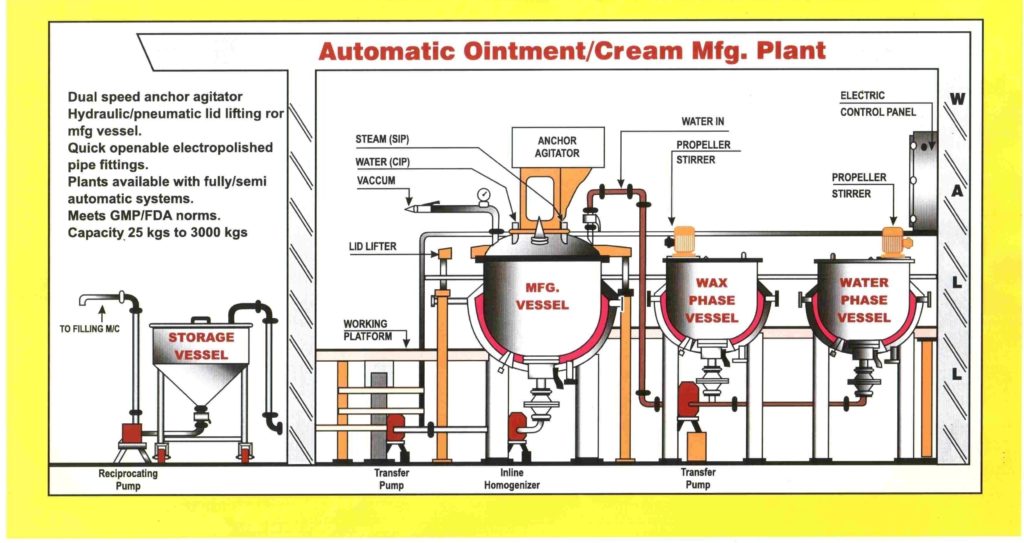

Ointment manufacturing plant consist the following equipment and accessories
Manufacturing Vessel or Jacketed planetary mixer
Was phase vessel
Water phase vessel
Storage vessel
Vacuum pump
Control pump
Product piping
Working platform
Material transfer pump to transfer material from manufacturing vessel or planetary mixer to storage vessel & storage vessel to Ointment (Tube) filling machine.



Ointment Plant

Description

GENERAL

All vessels are manufactured from S.S. 316 grade stainless steel sheets and are cGMP compliant construction. The vessels are Jacketed, insulated, cladded and with suitable agitator assembly in each vessel. Wax is melted in Wax melting vessel, Water is heated in water heating vessel. Both wax and water are transferred into the manufacturing vessel automatically through vacuum. In manufacturing vessel both wax and water are homogenized to make a uniform emulsion and cooled by passing chilled water into the jacket of manufacturing vessel. After the emulsion is formed active ingredients / colors etc are added and are thoroughly mixed & homogenized. Later necessary perfume is added in case of cosmetics or wherever necessary. Ointment / Cream is ready. The same is transferred by bump pump into the storage vessel. & from the storage vessel it is automatically transferred into the filling machine by means of metering pump. Flow rate of Metering pump can be set as per your tube filling machines speed and capacity.

WAX MELTING VESSEL

All vessels are manufactured from S.S. 316 grade stainless steel sheets and are cGMP compliant construction. The vessels are Jacketed, insulated, cladded and with suitable agitator assembly in each vessel. Wax is melted in Wax melting vessel, Water is heated in water heating vessel. Both wax and water are transferred into the manufacturing vessel automatically through vacuum. In manufacturing vessel both wax and water are homogenized to make a uniform emulsion and cooled by passing chilled water into the jacket of manufacturing vessel. After the emulsion is formed active ingredients / colours etc are added and are thoroughly mixed & homogenized. Later necessary perfume is added in case of cosmetics or wherever necessary. Ointment / Cream is ready. The same is transferred by bump pump into the storage vessel. & from the storage vessel it is automatically transferred into the filling machine by means of metering pump. Flow rate of Metering pump can be set as per your tube filling machines speed and capacity.

WATER HEATING VESSEL

Wax Phase Vessel
Vessel’s Inner Thickness 316 Material
Vessel’s Bottom Thickness SS 316 Material
Vessel’s Top Loose Lid Thickness SS 316 Material
Vessel’s Jacket Shell Thickness Mild Steel Material
Vessel’s Jacket Bottom Thickness Mild Steel Material
Jacket Insulation Thickness Mineral Wool Material
Jacket Insulation Cover Thickness SS 304 Material
Jacket Design Pressure 3.0 Kgs/ cm2
Testing Pressure 2.0 Kgs/ cm2
Working Pressure 3.0 to 4.0 Kgs/ cm2
Temperature Controller P.T100 Temperature Sensor
Temperature Indicator Digital indicator and controller
Vessel’s bottom support 03 Nos. of SS 304 Pipe Legs,
Wax Phase Vessel’s Connections
  • Discharge 25 mm diameter flush bottom ball valve made out of SS316
  • Conical filter provided at discharge port of valve, at bottom of vessel.
Vessel’s Jacket Nozzles For Steam Heated Model
Steam inlet connection 1 No.
Steam outlet connection 1 No.
Drain connection 1 No.
Pressure gauge, Safety valve & Air vent connection 1 No.
Cold Water inlet connection 1 No.
Cold Water outlet connection 1 No.
Agitation Assembly
Main Drive Motor 0.5 HP/960 RPM/TEFC/Non- Flameproof / 50 Hz / 415 VAC motor
Centrally Located High Speed Stirrer Final RPM 960 RPM ( Approximate )
Drive Motor fixed with tank mounted structure and direct coupled with stirrer shaft.
Water Heating Vessel
Vessel’s Inner Thickness 4 mm SS 316 Material
Vessel’s Bottom Thickness 5 mm SS 316 Material
Vessel’s Top Loose Lid Thickness 1.6 mm SS 316 Material
Vessel’s Jacket Shell Thickness 4 mm Mild Steel Material
Vessel’s Jacket Bottom Thickness 5 mm Mild Steel Material
Jacket Insulation Thickness 50 mm Mineral Wool Material
Jacket Insulation Cover Thickness 2 mm SS 304 Material
Jacket Design Pressure 7.0 Kgs/ cm2
Testing Pressure 5.0 Kgs/ cm2
Working Pressure 3.0 to 4.0 Kgs/ cm2
Temperature Controller P.T100  Sensor
Temperature Indicator Digital
Vessel’s bottom support 03 Nos. of SS 304 Pipe Legs, 100 MM X 4 mm Thickness
Water Heating Vessel’s Connections
  • Discharge 25mm diameter flush bottom ball valve made out of SS304.
  • Conical filter provided at discharge port of valve, at bottom of vessel.
Vessel’s Jacket Nozzles For Steam Heated Model
Steam inlet connection 1 No.
Steam outlet connection 1 No.
Drain connection 1 No.
Pressure gauge, Safety valve & Air vent connection 1 No.
Cold Water inlet connection 1 No.
Cold Water outlet connection 1 No.
Agitation Assembly
Main Drive Motor 0.5 HP / 960 RPM / TEFC / Non- Flameproof / 50 Hz / 415 VAC motor
Centrally Located High Speed Stirrer Final RPM 960 RPM ( Approximate )
Drive Motor fixed with tank mounted structure and direct coupled with stirrer shaft.

Ointment Manufacturing Vessel are cylindrical vessels with either hemispherical or dished bottom vessels with loose type top lids. In some cases the top is also sealed by dished ends if clients demand for the same. Vessel are jacketed with either steam or electric heating as per clients requirements. Propeller type agitator is provided from the top and driven by suitable HP motor as per the vessel capacity. Bottom entry agitator are provided for closed type vessels. Water is heated in the vessel bet 60 – 80’c as process demands and melted. This heated water is later transferred into the manufacturing vessel. The vessel has a outlet valve fitted with din fittings for connection of suitable pipeline. A 100 mesh conical filter is provided for filteration of water of any impurities.

OINTMENT MANUFACTURING VESSEL

Manufacturing vessel is cylindrical vessels with either hemispherical or dished bottom vessels. Top of the vessel is also dished end. Silicon gasket is provided between vessel and top lid.

Ointment Manufacturing Vessel Agitator assembly in the manufacturing vessel., Bottom entry Homogeniser & Top Dual speed anchor agitator is provided in the manufacturing vessel. Hydraulic lifting of the top lid is provided in manufacturing vessel for cleaning. Suitable nozzles, manholes, valves etc are provided in all the vessels. Vessel is also provided with jacket which can be used for both heating and cooling. However in manufacturing vessel mainly cooling is done. Manufacturing vessel can be subjected to full vacuum.

Ointment Manufacturing Vessel’s Connections
  • Discharge 40 mm diameter throgh inbuilt Emulsifier.
  • One temperature sensor port.
Manufacturing Vessel’s Jacket Nozzles For Steam Heated Model
Agitation Assembly
Main Drive Motor With A.C. Drive 2 HP / 1400 RPM / TEFC / Non – Flameproof / 50 Hz / 415 VAC motor
Beaters & Scrapper RPM Approximate 20 RPM
Scrapper Thickness 6 mm, SS 304 Material flat shape
Scrapper Thickness 6 mm PTFE ( Teflon )
Motor for High Speed Emulsifier 3 HP/ 3 Ph/415VAC/1400 RPM/ 50 Hz /TEFC Non- Flameproof motor
RPM of In Line High Speed  Emulsifier 1400 RPM ( Approximate)
Agitator shaft SS 316 Material
Gear Worm Reduction Gear
Drive Gears attach motor drive for Agitator Assembly with variable A.C Drive for Agitator Assembly Motor.
Storage Vessel

Storage vessel is simple vessel used to store ointments and creams etc. it is cylindrical type of vessel with conical bottom. Bottom valve is provided with din fittings to facilitate the pipeline connection. It is provided with loose top lid.

Vessel’s Inner Thickness  – Shell – Bottom 1.6mm, SS 316 Material 2 mm, SS 316 Material
Vessel’s bottom thickness & shape 4.0 mm, 450 Dig. Conical bottom
Vessel’s bottom support With Castor Moving 03 Nos. of SS 304 Pipe Legs, 100 MM X 3 mm Thickness
Storage Vessel Connections
  • Discharge 40mm diameter flush bottom ball valve made out of SS304.
  • 01 Nos. connections for fittings of extra facilities like fitting of temperature sensor.
  • Loose lid provided on top of the vessel in two pieces
PUMPS

Bump pump is a specially designed pump which is custom built as per capacity and requirements of the ointment plant. It is used to transfer ointment from the manufacturing vessel to the storage vessel.. The Rpm of the pump varies as per the viscocity of the ointment /cream. All contact parts are of S.S. 316 quality stainless steel.

Metering pump is also specially designed pump which is also commonly called as positive displacement pump. It is used to transfer ointment/ cream from the storage vessel to the filling machine hopper. There is a setting wheel in the metering pump wherein you can set the transfer rate as per the speed and capacity of your filling machine this prevents overflowing of the hopper and also complete automatic transfer. This pump is also has S..S 316 contact parts.

Vacuum pump of suitable capacity is normally in clients scope or otherwise as specified. This pump is kept in utility section and the connection is done in the main vessel to the pump. The operation of this pump is provided in the control panel.

PIPELINE FOR OINTMENT PLANT

Interconnecting pipeline is provided for the plant as per the layout of the clients room size. All pipelines are electropolished from inside and outside. All joints are DIN standards quick open able types.

OTHERS Equipment

All vessels have CIP/ SIP nozzles & conical filters are provided at the discharge of the vessels. Entire plant is fully automatic and interconnected by suitable pipeline & requires only one operator for all the operations. Suitable working platform is provided for cleaning and maintenance. An integrated control panel fully automatic controlled by a PLC is provided.

Inline homogenisers are also provided for specific applications or where height constraints are there. Working platform made out of S.S. 304 is also provided for ease in working/ cleaning / operations etc.

Ointment Transfer Pump

One pump required transferring the material from Mixing Vessel to the Storage Vessel & another pump required to transfer the material from storage vessel to the hopper of Ointment Filling M/c.

OINTMENT TRANSFER PUMP MOTOR 0.5 HP / 1400RPM / 3Ph / 50Hz / 415VAC / TEFC / Non-Flameproof motor.
Control Panel for Ointment Plant
03 Nos. of indicating lamp for three phase supply.
02 Nos. push buttons are required for operating the Main Agitator motor.
( A.C Drive for variable speed will be provided on extra cost, if required )
02 Nos. push buttons are provided for operating the Emulsifier motor
( A.C Drive for variable speed will be provided on extra cost, if required )
04 Set of 02 nos. ON-OFF push buttons provided for Wax Phase Vessel Motor / Water Phase Vessel Motor / 02 nos. Ointment Transfer Pump Motor.
Digital temperature indicators with sensors for Manufacturing Vessel
Digital temperature indicators with sensors for Wax phase Vessel
Digital temperature indicators with sensors for Water phase Vessel
Digital timers two motors of the Manufacturing Vessel
